Inter Row Rotary
| Model | Param 781 |
| Product | Inter 2 Row Rotary Weeder |
| Overall Length Of weeder | 1080 mm |
| Overall Width of Weeder | 2060 mm |
| Overall Height of Weeder | 1180 mm |
| Working Area in 1 Row | 24 inches |
| Non Work Area Btw 1 Row | 245 mm |
| Type of Rows | Adjustable |
| Thickness of Side Plates | 8 mm |
| Trailing Board Type | Hinged |
| Side Driver Gear | 24 Teeth |
| Side Idler Gear | 35 Teeth |
| Side Driven Gear | 28 Teeth |
| Oil Capacity in Gearbox | 3Ltr. |
| Grade of Oil | EP-140 |
| No. of Blades on Flanges | 6 pcs. |
| Driver Housing Bearing | 6213 |
| Idler Gear Bearing | 6209 |
| Driven Housing Bearing | 6310 |
| Thickness of Body | 3 mm |
| Thickness of Dalla | 3 mm |
| Type of Blade | L-SHAPE |
| Weight | 550 kg approx |
| No.of Flanges in each Row | 3 |
| Type of Gearbox | Single Speed/Multi Speed |
| Thickness of Flanges | 10.5 mm |
| Type of Blade | L-Shape |
| Power Required | 35Hp & Above |
| Model | Tyne Type |
| Overall Length Of weeder | 2080 mm |
| Overall Width of Weeder | 890 mm |
| Distance Btw 2 Flanges | 245 mm |
| Working Area in 1 Row | 382 mm |
| Non Work Area Btw 1 Row | 245 mm |
| Thickness of Side Plates | 8 mm |
| Trailing Board Type | Hinged |
| Type of Drive Driver Gear | Gear Drive 20 Teeth |
| Idler Gear Driven Gear | 35 Teeth 28 Teeth |
| Oil Capacity in Gearbox | 3Ltr. |
| Grade of Oil | EP-140 |
| No. of Blades on Flanges | 6 pcs. |
| Driver Housing Bearing | 6213 |
| Idler Gear Bearing | 6209 |
| Driven Housing Bearing | 6310 |
| Thickness of Body | 3 mm |
| Thickness of Dalla | 3 mm |
| Type of Blade | L-SHAPE |
| Weight | 540 kg approx |
| No.of Flanges in each Row | 2 |
| Type of Gearbox | Multispeed |
| DIA of Flanges | 228 mm |
| Thickness of Flanges | 10.5 mm |
| MODEL | 751 |
| Overall Work Length Of weeder (mm) | 1852 |
| Overall Width of Weeder (mm) | 1000 |
| Overall Length of Weeder (mm) | 2050 |
| Working Area in 1 Row (mm) | 395 |
| Non Working Area Btw 1 Row (mm) | 305 |
| Thickness of Side Plates (mm) | 8 |
| Trailing Board Type | Hinged |
| Type of Drive | Gear Drive |
| Driver, Idler, Driven Gear | 24 Teeth, 35 Teeth, 28 Teeth |
| Distance Btw 2 Flanges (mm) | 155 |
| Oil Capacity of Gearbox | 3Ltr, EP-140 |
| No. of Blades on Flanges (pcs) | 6 |
| Upper Housing Bearing | 6213 |
| Rotor Housing Bearing | 6310 |
| Type of Gearbox | Multi / Single speed |
| Thickness of Body (mm) | 4 |
| Thickness of Dalla (mm) | 3 |
| Type of Blade | L-SHAPE |
| Weight | 590 kg approx |
| No of Flanges in each Row | 2 |
| DIA of Flanges (mm) | 215 |
| Thickness of Flanges (mm) | 11 |

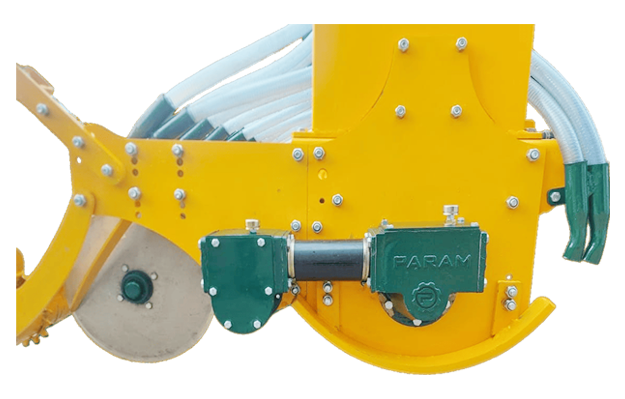

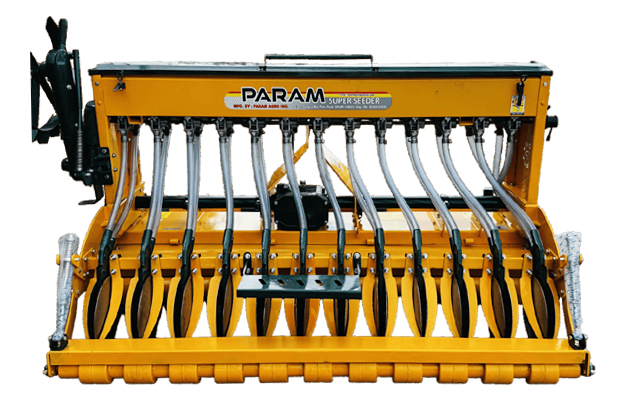

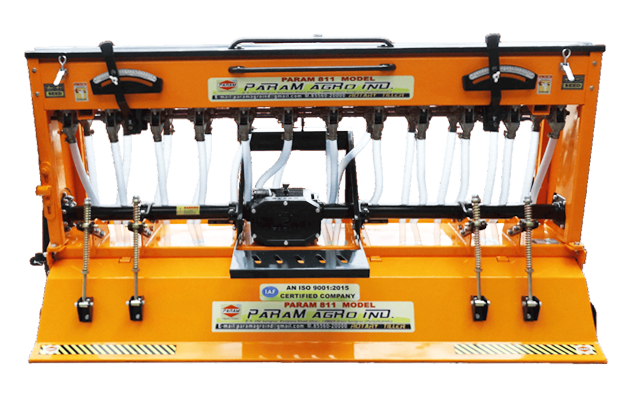

Super Seeder
| Model | 731 |
| Side Thickness of Plate | 10mm |
| Side of Bolt | 10mmx12mmx14mmx16mm |
| Side of Dalla | 2134mmx500mm |
| Thickness Of Dalla | 3mm |
| Thickness Of Body | 4mm |
| Size of Rotor | Length 2313xDia 90mm |
| No of Rotor Blade | 54 Nos. |
| Type of Rotor Blade | J-Shape |
| No. of Flange | 9 Nos |
| Type of Flange | M.S Circular Plate |
| No. of Skids | 2 Nos |
| Type of Gear Box | Bevel Gear Multi Speed |
| No of Teeth On Pinion | 11 Teeth |
| No of Teeth On Bevel Gear | 22 Teeth |
| Oil Capacity Gear Box | 3.5-Ltr, Ep-140 |
| Bevel Side Bearing | Taper Roller 30215 |
| Pinion Side Bearing | Taper Roller 30210 |
| Side Driver Gear | 20 Teeth |
| Side Idler Gear | 35 Teeth |
| Side Driven Gear | 28 Teeth |
| Oil Capacity Side Gear | 3.5 Ltr,Ep-140 |
| 11 No Housing Bearing | 1 Nos 6311 |
| 9 No of Housing Bearing | 1 Nos 6309 |
| 35 Teeth Gear Idler Bearing | 2 Nos 30209 |
| Super Seeder Length | 2400 mm |
| Super Seeder Width | 1100 mm |
| Super Seeder Height | 1070 mm |
| Super Seeder Weight | 988 kg approx |
| Tractor HP | Above 50HP |
| PTO 540 RPM Gear Box HP | 17-18 Teeth |
| PTO 1000 RPM Gear Box Gear | 12-23 Teeth |
| Work Length | 2110mm |
| Overall Length | 2370mm |
| No. of Tines | 11 Nos/12 Nos |
| Tine Roller Bearing | UCF 210, UCF 208 |
